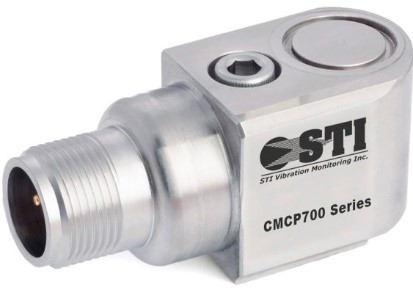

CMCP785A Low Cost Side Exit Compact Accelerometer

Features:
General Purpose Side Exit Accelerometer
100mVg ±10% (Standard, Others Available)
2 Pin MS 5015 Connector
Class 1 Division 2 Approved
Class 1 Division 1 Approved with IS Barrier or Isolator
-67 to +284°F (-55 to +140°C) Extended Temperature Range
±80g Range
¼”-28 UNF Captive Bolt
Sealed to IP68
3 Connection Options Available
Typical Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.
The CMCP785A Side Exit Low Cost Compact Accelerometer is the ideal accelerometer for use in small spaces. The CMCP785A is lightweight and can be use for magnet or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP785A is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series.
