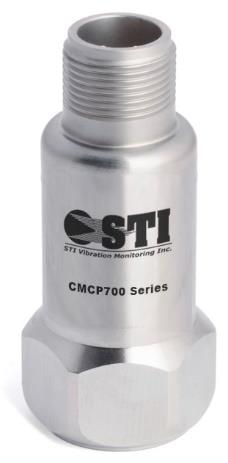

CMCP786A General Purpose Accelerometer

Features:
General Purpose Top Exit Accelerometer
100mVg ±10% (Standard, Others Available)
2 Pin MS 5015 Connector
Class 1 Division 2 Approved
Class 1 Division 1 Approved with IS Barrier or Isolator
-67 to +284°F (-55 to +140°C) Extended Temperature Range
±80g Range
¼”-28 UNF Mounting Stud Included (Adapters Available)
Sealed to IP68
3 Connection Options Available
Typical Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.
The CMCP786A Top Exit General Purpose Accelerometer is the ideal accelerometer for on most types of rotating equipment. The CMCP786A is lightweight and can be use for magnet or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP786A is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series.
