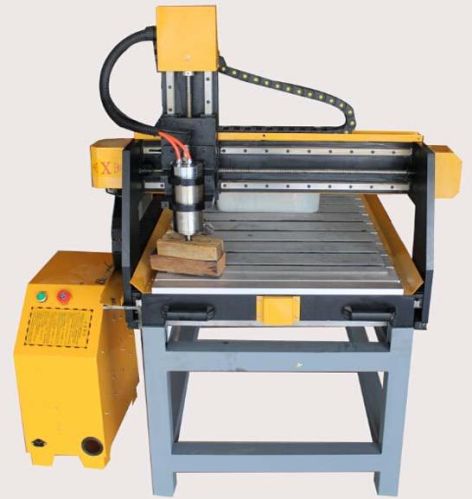

CNC Advertising Engraving Machine

We are offering cnc advertising engraving machine, router machine, cnc router, cutting machine.
Product features
1.the spindle motor is water cooled, and suitable on engraving aluminum plate as fast rotate speed, low vibration and low noise. 2.imported liner guideway, high precision ball screw of x, y, z axises; large bearing redundancy and long service life. 3.specialist output wires for lathe use. 4.integrate frame welding, steady support on ground; sohpisticated transmission, reduced vibration. 5.adopting stepper motors on x, y, z axises. 6. The spindle motor is compatible with ball cutters, straight cutters, flat base pointed cutters, which are in diameters ofï¿ 6 ï¿ 3.175, and renders reliable processing of sophisticated graphics. 7.it adopts ncstudio three-axis control system, which is compatible with cadcam softwares such as type3artcamjd paintug and so on, and is able to enforce speedy cutting and engraving with realtime path monitoring.
type zh-6090
dimensions(l*w*h) 1350 1100 1300mm
xy axis travel 600 900mm
z axis travel 100mm
platform size 1200*900mm
maximum speed of running 6mmin
maximum speed of engraving 4mmin
resolution 0.01mm
reposition accuracy 0.05mm
maximum feed thickness 80mm
command g code*u00*.plt*
software operating environment windows982000xp
weight 300kg
operating voltage 220v50hz
spindle power 1.5kw constant power
spindle speed 6000-24000rpmmin
