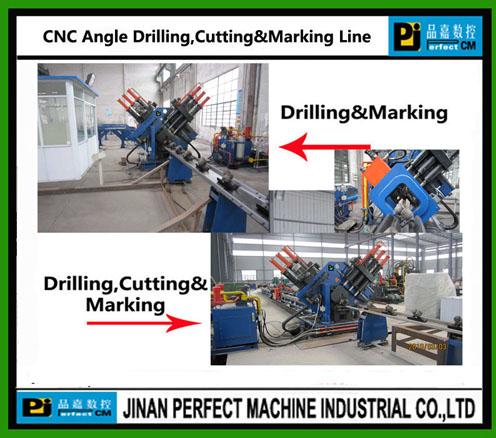

CNC Angle Drilling Line Machine, Certification : ISO

We are offering cnc angle drilling line machine.
High speed cnc angle drilling and marking line
applicable industry:
the machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.
specifications:
model tadm2532
angle size(mm) 1401401025025032
max. Length of blank(m) 12 14(by users request)
marking force(kn) 1030
no. Of character group 1
no. Of character 15
character size (mm) 141019
range of stadia(mm) 50220 stepless
no. Of drill on each side 3
taper of drilling spindle bt40
max. Drilling diameter (mm) 26
stroke of spindle(mm) 140
max. Spindle rotation speed(rmin) 6000
max. Feeding speed (mmin) 40
max. Moving speed of slipway of drilling head(mmin) 10
max. Feeding speed of drilling head(mmin) 14
no. Of cnc axes 9
overall dimensions(m) 307.53
total power(kw) 109.7
machine weight (kg) 30000
we welcome customers to visit our factory at any time.
JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
