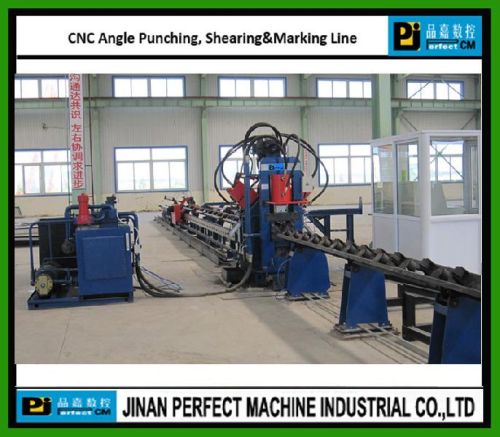

CNC Angle Punching Machine

We offer high speed cnc angle line machine for marking, punching and cutting.
Applicable industry:
skype: susancql
the machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.
specifications:
model bl2020 bl1412
angle size(mm) 50x50x3-200x200x20 ; 40x40x3-140x140x12
max. Punching (d t)(mm) 26x20 26x12
punching force(kn) 1000 600
marking force(kn) 800 800
shearing force(kn) 1400 900
max. Length of blank(m) 14 12
max. Length of finished 14 12
no. Of punching head on each side(piece) 3 2
no. Of character group 4 4
no. Of character in each group 12 12
range of stadia(mm) 20170(stepless) 15110(stepless)
character size (mm) 141019
no. Of cnc axes 3
shearing mode dual blade shearing
max. Infeed speed (mmin) 40 60
processing precision accordance with gb2694-81
programming mode input by keyboard, rs232 interface, floppy disk and usb interface
overall dimensions(mm) 32x7x2.6 ; 25.4x7x2.2
net weight of machine(kg) 16500 14500
