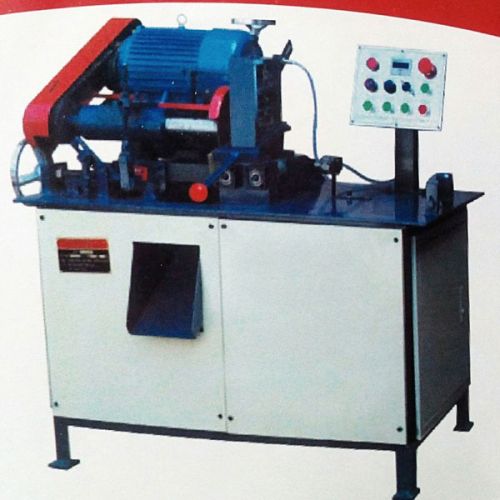

CNC Bar Cutting Machine

Supply TypeManufacturer
Preferred Buyer Location All over the world

We are reckoned among the trusted Manufacturers, Suppliers and Exporters of CNC Bar Cutting Machines from Gujarat. The CNC Bar Cutting Machines we make available are manufactured in compliance with international quality standards and norms. Reliable performance, unmatched durability and excellent quality are some of the attributes of our Bar Cutting Machines. The entire range of the Bar Cutting Machines is reasonably priced by us.

View More Details

Send Enquiry

Technical Specifications

Material	Model	Dia (mm)	Length (mm)	Operating Frequency pc/min.	Cutting accurcy mm	Main Motor's power	Spindle speed rpm	Machine weight kg	Overall dimensions LxWxH mm
Copper / Aluminum	SL-832D	8-32	5-120	80	+0.10	4p-2.2kw	1800	220	1100x550x1100
	SL-2550D	16-50	5-120	70	+0.10	4p-3Kw	1700	260	1100x550x1100
	SL-3060D	30-60	5-120	50	+0.10	4p-4Kw	1440	300	1100x620x1100
	SL-4080D	40-80	5-120	40	+0.10	4p-5.5kw	1440	350	1100x620x1100
Steel Pipe	JB-G40	15-40	5-80	12-32	+0.10	4p-2.2kw	1000	900	1300x700x1700
Steel Pipe	JB-G6.0	25-60	5-80	12-32	+0.10	4p-4.0kw	700	900	1300x700x1700
Steel Bar	YT-50	6-50		12-32	+0.10	2.2kw	1500	800	1500x1200x1700
