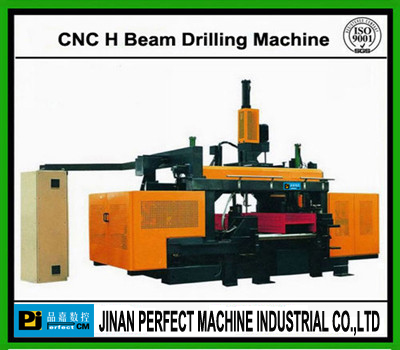

CNC Beam Drilling Line Machine

We are offering cnc h beam drilling machine (model swz1000swz1250)
applicable industry:
used for the drilling processing of h-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and output (tons-per-month) in today’s extremely competitive market. Model swz series machines eliminate time-consuming manual beam layout and hole drilling, formerly done by mag drills andor hydraulic punches.
product composition:
this machine is mainly composed of infeed conveyor, cnc infeed carriage, drilling unit, out-feeding conveyor, as well as hydraulic, electrical and pneumatic systems etc.
specifications:
model swz1000 swz1250
max. H-beams size (web height×flange width) (mm) 1000x500 1250x600
min. H-beams size (web height×flange width) (mm) 150x75 150x75
h beam length (mm), auto feeding ≥3000 ≥3000
h beam length (mm), manual feeding ≥690 ≥690
max. Workpiece weight (kg) 12000 15000
vertical drilling diameter (mm) φ12~φ33.5 φ12~φ33.5
horizontal drilling diameter (mm) φ12~φ26.5 φ12~φ26.5
no. Of spindle 3 3
rotation speed (stepless speed adjustment) (rpm) 180~650 180~650
