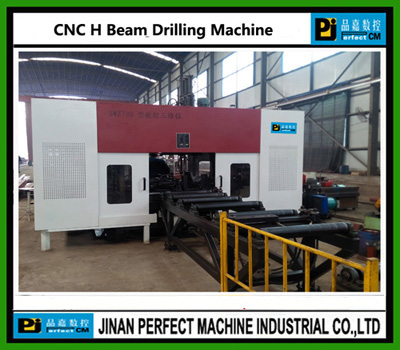

CNC Beams Drilling Machine Line, Packaging Type : Carton Box

₹ 1.08 Cr - ₹ 1.62 Cr / Units

MOQ1 Set(s)
Brand NamePERFECT
Packaging TypeCarton Box
ConditionNew
Beams Drilling MachineDrilling Machine
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Beams Drilling MachineDrilling Machine
Tube Sheet Drilling MachineBand Saw
Brand NamePERFECT
ConditionNew
Packaging TypeCarton Box
After-Sales Service ProvidedYES
Drilling Speed560RPM OR 3000RPM

We are offering 1250x600mm Beams Cnc Beams Drilling Machine Line.
Product Basic Parameter:
Model SWZ1000 SWZ1250
Work piece
Size H-beams Max. (web height Flange width) (mm) Max. 1000x500 1250x600
Min. 150x75
Length (mm) Auto feeding 3000
Manual feeding 690
Max. Workpiece weight (kg) 5000 10000
Thickness of web & flange (mm) 80
Drilling dia. (mm) Vertical drilling 12~ 33.5
Horizontal drilling 12~ 26.5
Drilling spindles No. Of spindle One spindle on each of three sides (top, left, right) Total: 3 spindles
Rotation speed (stepless speed adjustment) (rpm) 180~650
Max. Feeding ** (mm) (Left, right): 140 (Top): 240 or 325
Feeding speed(mmmin) 20~300
Movement of leftright spindle (mm) In the direction of workpiece length: 520
Above vertical base-level: 30~470 Above vertical base-level: 30~570
Movement of top spindle (mm) In the direction of workpiece length: 520
Beyond horizontal base-level: 910~45 Beyond horizontal base-level: 1160~45
Overall dimensions (L W H) (mm) 4450x3050x3520 4700x3050x3520
Total power (kW) 28
Machine weight (kg) Appr. 7000 Appr. 8500
JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
