Technical Data

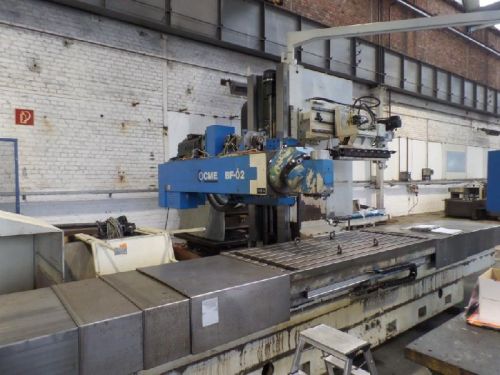

CNC-Bed Milling Machine
manufacturer CME
type BF 02
built 1999
travels X-Y-Z 1.500 x 1.000 x 1.000 mm
control HEIDENHAIN TNC-426 CB
table size 1.600 x 800 mm
workpiece table:
L x W 1.600 x 800 mm
max. table load ca. 3.000 kg
spindle
tool taper SK 50, DIN 69871
power 22 kW
speed 20 � 2.500 min-1
gear 2-steps
feeds
rapid feed 10 mmin
feed rate 0 � 5 mmin
tool changer:
no. of tool places 16
max. diameter (all places engaged) 125 mm
max. length 350 mm
max. weight 15 kg
draw bolt DIN 69872
cnc-control HEIDENHAIN TNC-426 CB
equipment:
coolant equipment with chip conveyor, universal milling head automatic swivelling in 2 levels
each 144 x 2,5° swivelling, machine covering.
