CNC Carving Machine

MOQ1 Piece(s)
X,Y structure Imported ball screw
Drive MotorStepper
Work-holding By clamp
Command G code*.u00*.mmg*plt
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Work-holding By clamp
Spindle power 1.5 KW /2.2KW
Resolution0.01mm
Diameter of cutter 3.175-8
Command G code*.u00*.mmg*plt
X.Y working area 600mm*900mm
Drive MotorStepper
Z structure Imported ball screw
Cooling mode Water Cooling/Air Cooling
Z working area 80mm
Operating system NC Studio
X,Y structure Imported ball screw
Spindle rotating speed 0-24000r/min
Working voltage AC220V/50/60 Hz ,2PH
Max speed10m/min

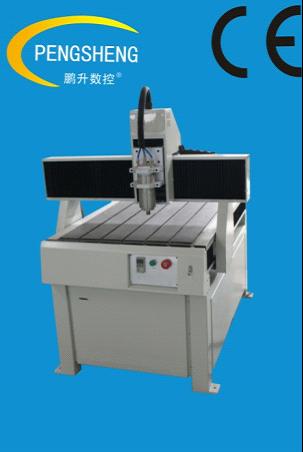

We are offering cnc carving machine for plastic.
1.â â â whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed.
2.â â â adopt 1.5kw china domestic made water cooling spindle.
3.â â â the machine adopts gantry movement,it can process any kinds of materials freely.
4.â â â three axes adopt imported ball screw and circle orbit,stable working,high precision and long life time.
5.â â â x ,z axes are dustproof.it makes sure the steady working performance of the machine for long-term using.
6.â â â well compatibility:cad/cam designing software e.g.
type3/artcam/castmate/wentai etc.
7.â â â has the function of forecasting process time.
8.â â â high precision,the curving and linear speeds are consistent.adopting excellent parts makes the fault rate to be the lowest one.
