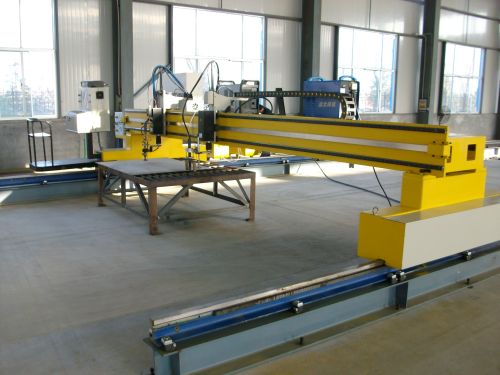

CNC Cutting Machine

We are offering Cnc Cutting Machine.
cnc flame cutting machine/ cnc plasma cutting machine
frame
gantry box beam with good carrying capacity, high double sides drive,for the compact structure,sufficient to eliminate the welding stress,its performance is stable and realiable.
guide ralls
horizontal guide ralls using domestic or imported guide, is of high precision and good guidance.
longitudunal guide ralls made from special metals,with grinding surface ,has very high mechanical precision and abrasion resistance.
drive rack,gear
horizontal, longitudinal transmission use germany neugart maintenancefree planetary gear reducer of high accuracy,large torque.low bak lash.
servo drive
our servo drive system is of panasonic, character position detection function, high working precision and short acceleration time.
gas systerm(flame torch)
equipped with automatic ignition, backfire prevention device, it is stable and secure.
track width(mm)
4000
4500
5000
6000
6500
7000
working width(mm)
3200
3700
4700
5200
5700
6200
overall width (mm)
4800
5300
6300
6800
7300
7800
cnc system
hypertherm systerm or famous domestic brand
plasma power
hypertherm or australian
torch lifting stroke(mm)
170,200 optional
idle sroke speed (mm/min)
0-10000
cutting speed (mm/min)
0-6000
flame cutting thickness(mm)
6-160 / 6-300
fuel gas category
ethyne or natural gas,propane
base category
h type or cement steel base, standard is h type
longitude chain
up chain or down chain, standard is down chain.
