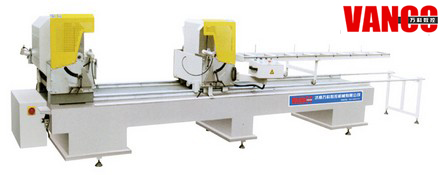

CNC Digital Readout Double Miter Saw

We offer cnc digital readout double miter saw for pvc profile ljz2a-450*3600
function:
used for pvc and aluminum profile cutting.
Features:
1. High precision, stable linear bearing system ensures precise cutting positioning and long term usage.
2. Air and hydraulic cylinder in feeding system ensures the processing requirement of cutting.
3. Same shaft type angle-changing structure and the follow up table for machine head are used for good surface cutting performance.
4. Angle adjusting device makes convenience angle conversion.
5. Automatic cutting angle change form 45° to 90°.
6. Two pieces of profile cutting in one time (height of profile less then 60mm).
7. Short profile cutting device on left machine head can realize super short profile cutting.
Technical parameter:
air pressure: 0.5mpa~0.8mpa
air consumption: 50lmin
power supply: 380v50hz
input power: 4.55kw
spindle revolving speed: 3400rmin
cutting length: 450mm~4200mm
cutting width: 120mm
cutting height: 120mm
dimension: 6000mm*1300mm*1650mm (l*w*h)
weight: 1200kg.
