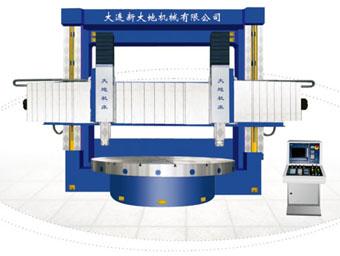

CNC Double Column Vertical Lathe Machine

We are offering cnc double column vertical lathe machine.
the ck5225 cnc double column vertical lathe features
1 ck5225 cnc vertical lathe is a advanced equipment with high performance, wide working processing scope and high production efficiency. They be used for mechanical processing such as rough and finishing machining inside and outside the cylinder, inner and outer conical surface, head face,grooving, arc surface and all kinds of curvilinear surface, thread’s etc.
2 machine tool main drive for ac motor drives,the ac motor drives the main shaft through the 16 step or 4 step changing speed mechanism;achieved the workbench rotate speed range.
3 the main shaft of workbench is centered by the high precision and adiustable diametral clearance biserial short cylindrical roller bearing. With the constant current and static pressure rack in axial direction. The workbench has the features of high running accuracy, large carrying capacity and small thermal deformation.
4 according to customer’s need with the isothermal cooling unit and independent hydraulic pressure station system, can be ensure the lathe operated at high working accuracy and stable of technical criteria.
5 the guide surfaces of lathe body, beam and ram using accurate grinding、high precision and good quality.
6 machine tools feeding is driven by ac servo motor, ball screw drive. The beam and vertical tool posts are covered with sealing shied which make the lathe more safe and easy to operate.
7 imported or home-made controlling systems can be adopted according to user’s needs.also can additional accessories for electric grinding head.
vertical lathe factory: dalian new earth machinery co.,ltd, it is one of the largest vertical lathe manufacturer in china, the main products: conventional vertical lathes, cnc vertical lathes, cnc high-speed vertical lathe, vertical turning machines, china vertical lathe and so on.
