Metal Rubber CNC Double Column Vertical Lathe Machine

Get Latest Price

MaterialMetal and Rubber
Number Of FlowerVertical Lathe Machine
Table Diameter2250 Mm
Carriages Feeding Motors Power3 KW
Supply TypeExporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Gorbrex Machinery Trade Sp. z o.o.

Rudniki

View Number

Member Since 22 Years
Nature of Business Exporter
Year of Establishment 1996

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerVertical Lathe Machine
MaterialMetal and Rubber
Seat Diameter (Metric Cone)80 Mm
ControlSIEMENS 828
Dimensions5065 X 5280 X 4910 Mm
Rapid Feeds Of Carriage10 - 1780 Mm/min
Transversal Beam Feeding Motor Power5.2 KW
Max Horizontal Travel Of Carriage1390 Mm
Max Workpiece Diameter2500 Mm
Lubrication Unit Motor Power1.7 KW
Max Knife Intersection40 X 60 Mm
Carriages Number And Type2 Vertical - Ram Type
Max Swivel Angle30 Degrees
Transversal Beam Feeding360 Mm/min
Carriages Feeds Range0.09 - 16 Rpm
Max Workpiece Weight11,400 Kg
Max Distance Between Axis Of Ram560 Mm
Max Ram Travel1200 Mm
Max Workpiece Height1600 Mm
Main Motor Power45 KW
Table Speeds Range1.6 - 80 Rpm
Carriages Feeding Motors Power3 KW
Machine Weight35,500 Kg
Transversal Beam Clamping Motor Power2 KW
Table Diameter2250 Mm

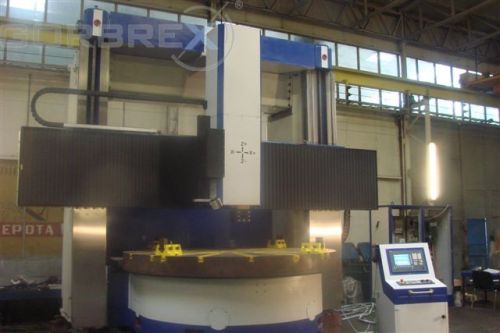

We are offering Cnc Double Column Vertical Lathe Sedin Model: 1525
Manufacturer: SEDIN - RUSSIA
Model: 1525 CNC
New in: 90's/2012
Condition: very good, after renovation, under power, equipped with CNC control SIEMENS 828
Control: SIEMENS 828
Localisation: our Workshop Rudniki - Poland
Table diameter: 2250 mm
Distance between table and ram: 0 - 1780 mm
Distance between table and lower surface of transv.beam: 400 - 1640mm
Max workpiece diameter: 2500 mm
Max workpiece high: 1600 mm
Max workpiece weight: 11 400 kg
Max ram travel: 1200 mm
Max horizontal travel of carriage: 1390 mm
Max swivel angle: 30 degrees
Max distance between axis of ram: 560 mm
Max knife intersection: 40 x 60 mm
Seat diameter ( metric cone ): 80 mm
Carriages number and type: 2 vertical - ram type
Table speeds number: 18
Table speeds range: 1.6 - 80 rpm
Carriages feeds number: 16
Carriages feeds range: 0.09 - 16 rpm
Rapid feeds of carriage: 10 - 1780 mm/min
Transversal beam feeding: 360 mm/min
Motors and overall dimensions:
Main motor: 45 kW , 1430 mph
Transversal beam feeding motor: 5.2 kW , 1500 rpm
Transversal beam clamping motor: 2 kW, 1500 rpm
Carriages feeding motors ( 2 nos )3 kW , 1500 rpm
Lubrication unit motor: 1.7 kW, 1500 rpm
Dimensions: 5065 x 5280 x 4910 mm
Machine weight: 35 500 kg
