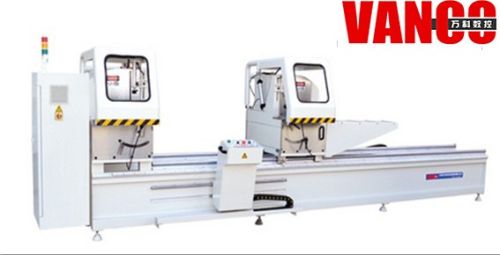

CNC Double Head Precision Cutting Saw

We offer cnc double-head precision cutting saw for aluminum profile ljz2s-cnc-500*4200
features:
1. Used for aluminum, pvc and curtain wall profile accurate and efficient cnc cutting.
2. Linear bearing system in moving and feeding device ensures the accuracy of machine running, cutting and stable performance.
3. Right head feeding adopts high helical ball screw lead motion, with high accuracy and stability.
4. Automatic angle cutting can be changed in 45° and 90°.
5. Cemented carbide saw blade with high precision and durability.
6. High precision axis ensures stable running.
7. Air and hydraulic cylinder ensure the stable speed adjusting and saw blade working.
8. Protective cover open and close automatically ensures the safe operation of man working.
Technical parameter:
power supply: 380v50hz, three-phase five-wire
motor power: 7.4kw
operation air pressure: 0.5~0.8mpa
air consumption: 0.2m³min
saw blade standard: φ500mm*φ30mm*4.4mm*120t
motor revolving speed: 3400rmin
cutting speed: 0~10mmin
cutting length: 435~4200mm (double heads 90o)
error in length: ±0.1mm
cutting angle: 90°45°, (other angles are optional)
angle error: ≤5′
cutting width: 190mm (max)
cutting height: 390mm (max)
dimension: 5560mm (l) *1750mm (w) *1950mm (h)
weight: 2000kg
