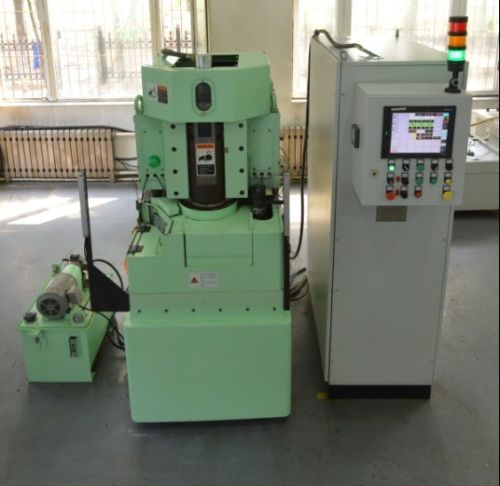

CNC Double- Surface Grinder for specific

We are offering cnc double- surface grinder for processing cv joint. Cv joint is an important component of cars.it can transmit the power of engine to the drive grinding wheel. There are many kinds of cv joint,most applied are ball cage and triangle. Because the high precision,huge quantity and ask for the safety,the main components of it are processed by high precision.hermos cnc internal grinder is the leader of high precision processing industry.we use the cnc internal grinder and cnc surface grinder to process the cv joint.ensure the precision of workpiece and improve the efficiency at the same time.
Technical parameters:
item parameters unit
grindable work o.d. (max) φ140 (or according to demand) mm
grindable work height 2-50 (or according to demand) mm
maximum speed of grinding spindle 1450 rpm
grinding wheel diameter cbn305 mm
feed rate of wheelhead table 0.003-3.125 mms
chuck revolution speed 0-104 (or according to demand) rpm
cycle time 10-15(according to workpiece features) s
grinding spindle power 11 kw
total power 26 kw
net weight 4 t
floor space(l×w×h) 1100×1500×2000 mm
work
precision flatness ≤2 μm
parallelism ≤2 μm
dimension tolerance ≤2 μm
surface roughness ≤ra0.4 μm
machine tool main functional characteristics；
item specifications and features item specifications and features
grinding automatic grinding wheel and dressing cbn grinding wheel
manual manual dressing
adjustment grinding position adjustment automatic dressing
dressing position adjustment network function remote diagnosis
manual data statistics
feed position correction processing
position compensation electrical energy voltage measurement
automatic electric
current measurement
manual energy statistics
rotation change grinding wheel others touch screen and man-machine interaction system
chuck
work table teaching, help system
