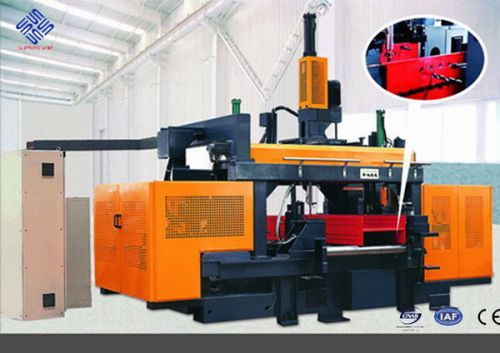

CNC Drilling Machine For H Beam Model Swz1250

₹ 1.66 Cr / 210000 210000 Set

MOQ1 Set(s)
U beam mm150x80~1250x300
Drilling Thickness mm≤80
H beam mm150x80~1250x600
Box beam mm150x80~1250x300
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering cnc drilling machine for h beam.
There are there models for available.
1) normal speed ,can reach 560 rmp.min
2) economic type, spindle rotation speed can reach 2000 rmpmin, simple structure
3) high configuration with strong structure ,high speed drilling ,the spindle rotation speed can reach 3000rmp min
economic type swz1250a cnc beam drilling machine
name unit parameter remark
range of workpiece
h beam mm 150x80~1250x600
u beam mm 150x80~1250x300
box beam mm 150x80~1250x300
thickness mm ≤80
length m standard 15 by client request
short material restrictions mm automatic process≥3000
manual process:690~3000
drill power box number piece 3
range of diameter mm 5~40
rotation of spindle rmin 30~2000
taper of spindle m4
motor power of spindle kw 3×11
