CNC Drilling Machine For H-beams, Certification : ISO9001

We offer cnc drilling machine for beam
2.drill h I u beam
3.structural steel fabrication
4.3 spindles,max dia 50mm

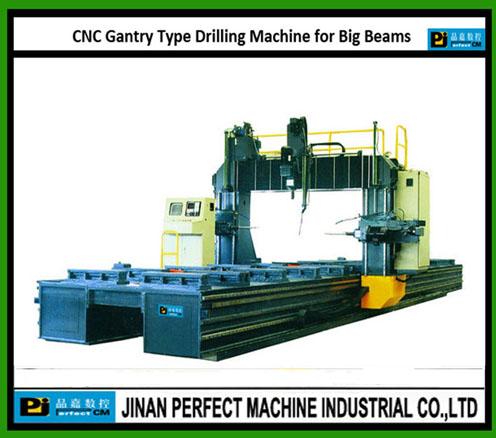

gantry type h beams drilling machine line
product feature:
1. Three slipway type cnc drilling spindles respectively on the up, left & right, can drill holes simultaneously.
2. Cnc & plc systems, crt display.
3. Eight cnc axes.
4. Coordinates of drilling can be directly transferred to cadcam.
5. Automatic chip removal, circular coolant.
6. Laser alignment conveniently.
specifications:
model tswz1000 tswz1250
work piece
size h-beams max. (web height flange width) (mm) max. 1000x500 1250x600
min. 150x75
length (mm) auto feeding 3000
manual feeding 690
max. Workpiece weight (kg) 5000 10000
thickness of web & flange (mm) 80
drilling dia. (mm) vertical drilling 12~ 33.5
horizontal drilling 12~ 26.5
drilling spindles no. Of spindle one spindle on each of three sides (top, left, right) total: 3 spindles
rotation speed (stepless speed adjustment) (rpm) 180~650
max. Feeding ** (mm) (left, right): 140 (top): 240 or 325
feeding speed(mmmin) 20~300
movement of leftright spindle (mm) in the direction of workpiece length: 520
above vertical base-level: 30~470 above vertical base-level: 30~570
movement of top spindle (mm) in the direction of workpiece length: 520
beyond horizontal base-level: 910~45 beyond horizontal base-level: 1160~45
overall dimensions (l w h) (mm) 4450x3050x3520 4700x3050x3520
total power (kw) 28
machine weight (kg) appr. 7000 appr. 8500
we welcome customers to visit our factory at any time. No wait, please order now!
thanks. Susan
skype--susancql. JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
