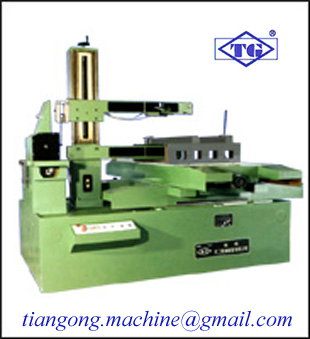

CNC EDM Wire-cutting Machines (dk7750/dk7763)

We Offer Cnc Edm Wire-cutting Machines (dk7750/dk7763).
Product Description
DK7750 Specs:
Surface of working table/mm(LxW): 540x890
Course fo working table/mm(XxY): 500X630
Max. Thickness/mm: 500
Max. Weight/kg: 700
Max. Cutting taper: 6-12deg. /80mm
Precision/mm: 0.02
Roughness/um: Ra≤ 2.5
Speed m/s: 11.6
Diameter of electrode/mm: Φ 0.14-φ 0.25
Max. Productivity mm2/min: 100
Dimension/mm: 1720x1680x1700
Packing dimension/mm: 1920x1880x1900
Electric capacity/KVA: 1.2
DK7763 Specs:
Surface of working table/mm(LxW): 650X1030
Course fo working table/mm(XxY): 630X800
Max. Thickness/mm: 600
Max. Weight/kg: 1000
Max. Cutting taper: 6-12deg. /80mm
Precision/mm: 0.02
Roughness/um: Ra≤ 2.5
Speed m/s: 11.6
Diameter of electrode/mm: Φ 0.14-φ 0.25
Max. Productivity mm2/min: 100
Dimension/mm: 2100x1940x1700
Packing dimension/mm: 2300x2140x1980
Electric capacity/KVA: 1.2
More Product FeaturesTrademark: TianGong
Model NO.: DK7750/DK7763
Standard: ISO9001: 2000
Productivity: 100 Set/Sets per Month
Unit Price: US $ 3500-15000
Shipment Terms: Within 10 Workdays After Receiving Full Payment
Payment Terms: T/T
Minimum Order: 1 Set
Origin: China
Packing: Wooden Case
Type for Cutting Machine: CNC Cutting Machine
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
