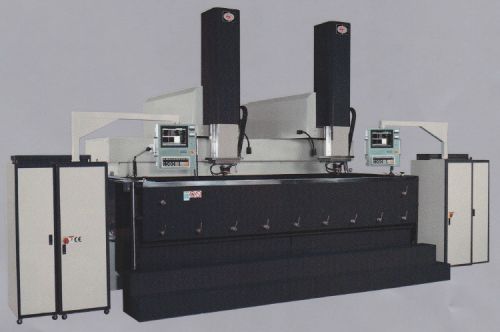

CNC Electric Discharge Machine

Cnc Electric Discharge Machine
model unit rnc40 rnc50 rnc85 rnc106 rnc137 rnc207 rnc307
cnc X/y Travel mm 400*300 600*500 800*500 1000*600 1300*700 2000*700 3000*900
spindle Travel mm 400 400 400 560 560 560 560
work Table mm 600*400 800*650 900*800 1400*900 1600*950 1600*950 3100*1000
max Work Piece mm 1200*750*400 1400*1000*500 1480*1050*500 2100*1150*750 2100*1150*750 2500*1300*750 3700*1400*700
max Work Piece Weight kg 1200 2500 4000 5000 5000 5000 10000
max Electrode Weight kg 300 300 300 500 500 500 500
machine Net Weight kg 2000 3200 4200 8600 8600 9200 17000
oil Level mm 200~360 270~520 150~420 370~700 370~700 100~650 260~560
table to Electrode Plate mm 350~740 500~900 450~850 810~1320 810~1320 400~850 580~1110
n.w kg 140 150 200 495 495 495 600
