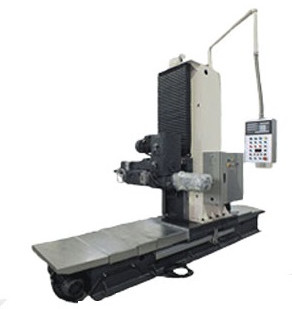

CNC End Milling Machine, Speciality : High Precision, Multiple Axes, Automatic Tool Changer

Company Information

Ask for more detail from the seller

Report incorrect details

MODEL NO	KMT080	KMT 125	KMT 150	KMT200	KMT315	KMT350	KMT450
NO OF SPEEDS	4	4	4	4	4	4	4
SPEED RANGE	120 210 300 500	120 210 300 500	120 210 300 500	100 180 275 400	75 140 220 300	75 140 220 300	25 50 75 100
MAIN MOTOR	13HP	5 HP	7.5 HP	10 HP	15 HP	20 HP	30 HP
SPINDLE DIA	90 MM	120 MM	120 MM	120 MM	140 MM	140 MM	180 MM
HORIZONTAL TRAVERS	80 MM	100 MM	110 MM	110 MM	140 MM	150 MM	150 MM
HORIZONTAL OPREATION	HAND OPERATED	HAND OPERATED	HAND OPERATED	HAND OPERATED	HAND OPERATED	HAND OPERATED	HAND OPERATED
MAIN SPINDLE SOCKET	I S O 50	I S O 50	I S O 50	I S O 50	I S O 50	I S O 50	I S O 50
CUTTER CAPACITY ON MILD STEEL	80MM	125MM	150MM	150MM	315MM	350MM	450MM
MILLING HEAD DIMENSIONS	WIDTH 410 MM HIGHT 360MM	WIDTH 470 MM HIGHT 430MM	WIDTH 470 MM HIGHT 430MM	WIDTH 560 MM HIGHT 480MM	WIDTH 620 MM HIGHT 540MM	WIDTH 620 MM HIGHT 600MM	WIDTH 820 MM HIGHT 680 MM
Max. Height of the Spindle Axis	1000	1100	1200	1300	1500	1800	2000
Iongitudinal Traverse	2000	2200	2500	3000	3500	4000	5000
