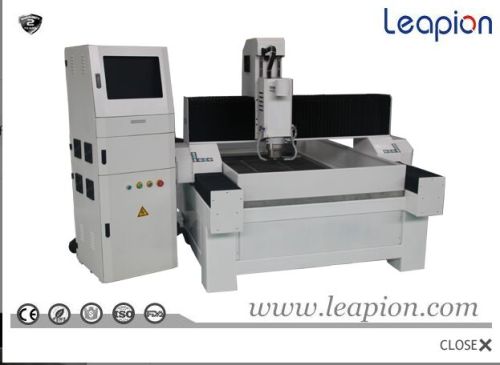

CNC Engraving Machine

₹ 4.43 Lakh / Piece

MOQ1 Piece(s)
Machine StructureT-steel tube
Country of OriginAC 380V/3PH/50HZ
Spindle power5.5kw water cooling
Max Moving Speed30000mm/min
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 2007

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Machine StructureT-steel tube
Country of OriginAC 380V/3PH/50HZ
Working area1300*2500*300mm 2000*3000*300mm 2000*4000*300mm
Max Moving Speed30000mm/min
Spindle power5.5kw water cooling
Driver motorStepper motor/YASKAWA/Leadshine/DELTA servo motor

Cnc engraving machine
sz a4
sz a4-1325
sz a4-2030
sz a4-2040
working area
1300*2500*300mm
2000*3000*300mm
2000*4000*300mm
body structure
t-steel tube
x,y structure
rack and pinion drive
z structure
ball screwgear rack
max moving speed
30000mmmin
x,y,z traveling positioning accuracy
0.04300mm
x,y,z repositioning accuracy
0.04mm
spindle speed
0-24000rpm
spindle power
5.5kw water cooling
voltage
ac 380v3ph50hz
driver motor
stepper motoryaskawaleadshinedelta servo motor
command language
g code,hpgl
control system
nc-studiodsp
software compatibility
type3,ucancam,artcam software
running environemt
temperature:0-45
net weight
1100kg
1500kg
1950kg
gross weight
1250kg
1800kg
2200kg.
