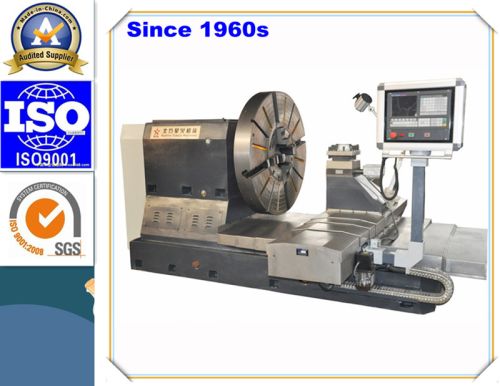

CNC Facing Lathe Machine

We offer cnc facing lathe machine for machining flange, bearing, gear. Ck61100 cnc facing lathe machine (cnc or manual control, both are available)
for machining face end of flange,cylinders, long shaft,tire mold, railway parts,wheel hub turbine,etc
1. Outstanding characteristics:
all components of machine are imported foreign famous brands, such as fanuc or simens control system schneider electrical control system, japanese bearing, abb motor& transmission boxgear box, etc. we can also configurate per customer's special request and demands. our engineers can design different configurations according to different work-pieces characteristics.
name ck61100 ck61125 ck61160 ck61200 ck61250
description unit
max. Swing over bed mm 1000 1250 1600 2000 2500
max. Swing over the skateboard mm 600 800 1200 1500 1800
max. Weight of work-piece t 1 1 2 2 3
max. Length of work-piece mm 700 700 700 700 700
gears of spindle speed infinitely variable speedstep-less speed
range of spindle speed rmin 10-300 10-200 10-160 10-160 4-80
chuck diameter mm 800 1000 1250 1600 2000
bearing diameter of main front shaft mm 190 190 220 220 300
x,z-axis feed range mmmin 0-3000
horizontal stroke mm 500 650 800 1000 1250
longitudinal stroke mm 700 700 700 700 700
main driving motor kw variable frequency 11kw-4 variable frequency 15kw-4 variable frequency 22kw-4 variable frequency 30kw-4 variable frequency 45kw-4
