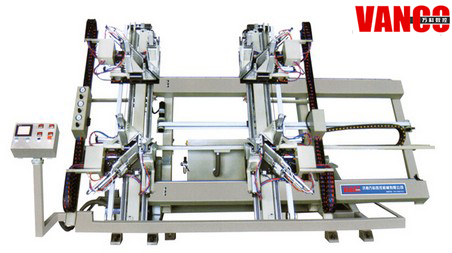

CNC Four Point Welding Machine

We are offering cnc four point welding machine for pvc window and door (parallel welding type) shp4-cnc-3000a
function:
latest machine type used to weld top grade white profile and color profile automatically.
Features:
1. It can realized automatic convention welding seam from 0.2mm to 2mm.
2. Special rigidity structure design of welding head is indeed meet the requirement of color welding.
3. Square bearing system is adopted in welding head feeding which ensures the reliable performance.
4. Unique general locking and special know-how technique keeps high strength and quality of corner.
5. Welding fixture can be changed easily, which get the top grade window and door.
6. Adopts imported a complete set of cnc system, high quality electrical component and pneumatic device which get the reliable performance.
7. Automatic size tolerance compensation ensures the with high precision improvement of welding product.
8. Optimized programmer design with high production efficiency.
9. Special suitable for volume and high-quality production of pvc window and door.
Technical parameter:
power supply: 380v50hz, three-phase four-wire
input power: 9kw
air pressure: 0.5~0.8mpa
air consumption: 100lmin
welding height: 20~130mm
max. Welding width: 120mm
welding range: 400mm*400mm~1800mm*3000mm
dimension: 5000mm*2100mm*2500mm (l*w*h)
weight: 3000kg
