Main features

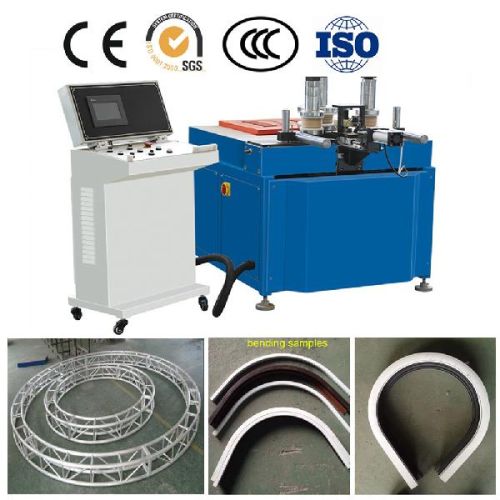

1. It is a good machine for the bending of building rebar. the machine is mainly used for bending for metal materials such as iron, copper, and aluminum and special-shaped material. It is a good machine for furniture manufacturers, wrought iron engineering manufactures, aluminum doors and windows manufacturers, decorative steel structure enterprise.
2. It adopts non-contact switch sensor and embedded microcomputer control, which solves the problem of the traditional bending machine�s big bending error.
3. The machine adopts cnc controller, which makes the machine features easy handling and high precision.
4. Using cnc software makes the bending operation very simple.
5. Can bend many shapes such as c shape, u shape, s shape, circle and spring.
6. Capable of detecting material rebound data, eliminate rebound.
7. Adopts more convenient operating system and thus improve working efficiency.
8. Low energy consumption.
Technical parameter
input power 10.5kw
input voltage 380v 50hz
air pressure 0.4-0.8mpa
min bending diameter 230mm
max roller die diameter 200mm
rotation speed of shaft 1-8rmin
roller diameter 40mm
max width of profile 200mm
fixing roller centre distance 330-750mm
positioning precision 0.02mm
oil pressure 20t(200mpa)
upper roller stroke 280mm
machine dimension 1200x1100x1100mm
weight 1000kgs
