CNC Gantry Milling Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The three axes of our CNC Gantry Milling Machine are provided with high efficiency and self-lubricating linear guide rails, which are characterized by high-speed, high-precision, and longer....

View More Details

Send Enquiry

Product Details

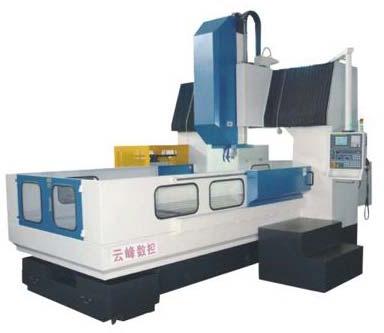

The three axes of our CNC Gantry Milling Machine are provided with high efficiency and self-lubricating linear guide rails, which are characterized by high-speed, high-precision, and longer functional life. The use of latest high rigidity cast structure guarantees unique appearance, durability and smooth functionality of the CNC Gantry Milling Machine. Z-axis of our CNC Gantry Milling Machine is balanced with nitrogen to eliminate trace vibration during processing. Also, it is equipped with either line rails or hard tracks to ensure high-precision and strength. We are one of the leading Manufacturers and Suppliers of CNC Gantry Milling Machine from China.

Technical Specifications

LG-22/27/34 series of fixed girder machining center in Longmenmechanical specifications
Type Item	Unit	LG22 Series			LG27A Series				LG27B Series			LG34 Series			LG3617
Type Item	Unit	LG2022	LG3022	LG4022	LG3027A	LG4027A	LG5027A	LG6027A	LG3027B	LG4027B	LG5027B	LG6027B	LG6034	LG6034
Control System	Misubishi Series Fanuc Series
Stroke
Left and right travel (X axis)	mm	2200	3200	4200	3200	4200	5200	6200	3200	4200	5200	6200	6200	8200	3600
Forwards and backwards stroke (Y axis)	mm	2200	2200	2200	2700	2700	2700	2700	2700	2700	2700	2700	4000	4000	1700
Spindlestroke (Z axis)	Mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1250	1250	900
Distance from spindle.	Mm	250-1250	250-1250	250-1250	250-1250	250-1250	250-1250	250-1250	250-1250	250-1250	250-1250	250-1250	350-1600	350-1600	150-1050
Specifications ofX/Y/Z axis screa		8016, 6316, 5010			8016, 6316, 5010				8016, 6316, 5010				8016, 6316, 5010		6320, 5020, 5010
Specifications ofX/Y/Z axis guiderail	mm	2-55(X),2-65(Y),2-65(Z)			2-55(X),2-65(Y),2-65(Z)				3-55(X), 2-55(Y),2-65(Z)				3-55ï¼ï¿½X), 2-55ï¼ï¿½Y),2-65ï¼ï¿½Zï¼ï¿½		2-55(X),2-65(Y),2-65(Y)
Width of gantry	Mm	2200	2200	2200	2700	2700	2700	2700	2700	2700	2700	2700	3400	3400	1900
Workbench
Workbench Size	Mm	2000×1800	3000×1800	4000×1800	3000×2300	4000×2300	5000×2300	6000×2300	3000×2300	4000×2300	5000×2300	6000×2300	6000×2600	8000×2600	3600×1700
T-slot of workbench			9-22×200										22×200	28×200	8-22×200
Bearing capacity of workbench	T	8	10	11	8	10	13	16	12	15	18	20	25	30	10
Spindle
Spindle model		BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
Spindle speed	rpm	4000(short)4500(long)optional 6000
Spindle motor (continuous /30)	kw			18/22	15/18.5	18/22	18/22	22/26	15/18.5	18/22	18/22	22/26	22/26	22/26	15/18.5
Feed
X-axis rapid feed rate	Mm/min	12000	12000	12000	12000	12000	10000	8000	12000	12000	10000	8000	10000	10000	12000
Y-axis rapid feed rate	Mm/min	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200
Z-axis rapid feed rate	Mm/min	12000	12000	12000	1000	1000	1000	1000	1000	1000	1000	1000	1200	1200	1200
Cutting feed rate	Mm/min	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000	10-7000
Tool magazine(optional)
Capacity of tool magazine		16	16	16	24	24	24	24	24	24	24	24	24	24	24
Maximum tool diameter	mm	127/215	127/215	127/215	127/215	127/215	127/215	127/215	127/215	127/215	127/215	127/215	127/215	127/215	127/215
Maximum tool length	mm	350	350	350	350	350	350	350	350	350	350	350	350	350	350
Maximum tool weight	Kg	30	30	35	30	35	35	35	45	30	35	35	45	45	30
Others
Power demands	KW	30	30	35	30	35	35	45	30	35	35	45	45	45	30
Pnrumatic demands		5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7
Volume of cutting fiuid	L	420	420	420	720	720	720	720	720	720	720	720	720	720	420
Net weight of machine tool	T	35	40	45	50	55	55	65	52	56	60	68	82	95	35
