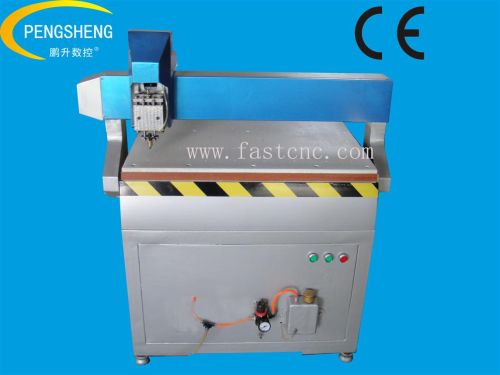

CNC Glass Cutting Machine, Brand Name : Penn

We are offering Cnc Glass Cutting Machine.
Features:
1.The three-coordinate moving system of the gear rack,guide rail,AC servo system and the imported high resolution coder.
The system enables the machine high reliability, efficiency and lower error.
2. CAD designed graph and figure,automatic cutting,all the cutting data are fully computer controlled.
3.The cutting machine programs of standard patterns and the combinations enable users to cut out any shapes of ordinary glass at one direction.
4.Automatically looks for the zero position(X axis,the Y axis,the Z axis),After opening machine and cutting finished,the three axle distinction automatically returns to the initial zero position return.
5.Each kind of protection function causes the equipment movement to be reliable.Tool bit protection.overload,hot protection,Around X axis,Y axis limit hardware,software protection,the mutual function of locking.
Technical Parameter:
Model PC-8070G PC-1312G PC2620G PC-3425G
Air blower electrical machinery power 1.5KW 3KW 4KW 5.5KW
Cutting glass thickness scope 0.5-8mm 2-8mm 3-12mm 3-19mm
End product glass size error ±0.2mm ±0.2mm ±0.2mm ±0.2mm
Total output 6kw 8kw 9.6kw 10.5kw
Air course system pressure 0.5-0.8Mpa
Cutting precision Parallelism: ±0.15mm
Catercorner: ±0.20mm
Max cutting speed of different shape 650mmsec
Tool bit degrees rotation scope 0°-360°
Min cutting radius of curvature 3mm
Max straight line cutting speed 1500mmsec
