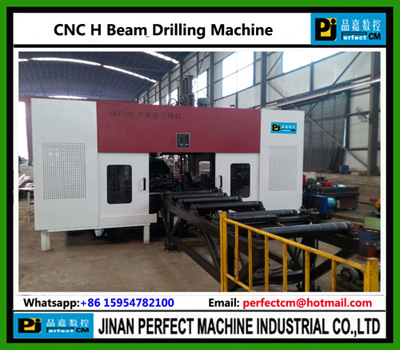

CNC H Beam Drilling Machine, Certification : ISO9001

MOQ1 Set(s)
Brand NamePERFECT
CertificationISO9001
CNC Machining or NotCNC
Drilling Speed1000rpm
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginChina
Brand NamePERFECT
CertificationISO9001
CNC Machining or NotCNC
Drilling Speed1000rpm
drilling machinedrill machine
Beam Drilling MachineCNC Drilling Machine

We are offering cnc h beam drilling line.
Product basic parameter:
model swz7700
work piece
size h-beams max. (web height flange width) (mm) max. 700x400
length (mm) auto feeding 3000
manual feeding 690
max. Workpiece weight (kg) 5000
thickness of web & flange (mm) 80
drilling dia. (mm) vertical drilling 12~ 30
drilling spindles no. Of spindle one spindle on each of three sides (top, left, right) total: 3 spindles
rotation speed (stepless speed adjustment) (rpm) 180~560
max. Feeding ** (mm) (left, right): 140 (top): 240 or 325
feeding speed(mmmin) 20~300
