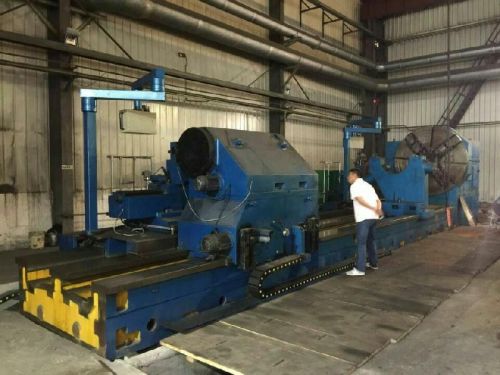

CNC Heavy Duty Horizontal Lathe CK61100

CNC Heavy Duty Horizontal Lathe is suit for tapering,curved surface, step shaft and slot. CNC Horizontal Lathe Machine can be equipped with different accessories in order to do grinding, milling and curved surface processing. Some key parts in the heavy duty horizontal CNC lathes like the bed, headbox,knife are using high energy cast iron with good material stability,which can withstand heavy cutting and long-term to maintain accuracy. Spindle adopts high-power motor drive, high horsepower and high torque.Spindle can achieve high precision cutting even in the low speed. The operator panel has been carefully designed,easy to be operated.
Technical specification of CNC Heavy Duty Horizontal Lathe CK61100
1 Maximum swivel diameter on the bed 1000mm
2 Maximum turning diameter over carriage 800mm
3 Maximum length of workpiece 506080 dm
4 Maximum weight between center 10 t
5 Diameter of faceplate 1000mm
6 Maximum torque of faceplate 50KN.m
7 Range of spindle speeds rmin 1.5-300 rmin
8 Maximum cutting force of carriage 60 KN
9 Range of feed rates ( long) 2-4500 mmmin
10 Range of feed rates( transverse ) 2-4500 mmmin
11 Rapid speed of of carriage( long) 4500 mmmin
12 Rapid speed of of carriage( transverse ) 4500 mmmin
13 Horizontal travel of tool post 450 mm
14 Travel of tailstock quill 250mm
15 Power of main motor 55KW
16 Machine weight(Approx) 45(5m) t
17 Overall dimensions(L×W×H) 920×270×245 cm
