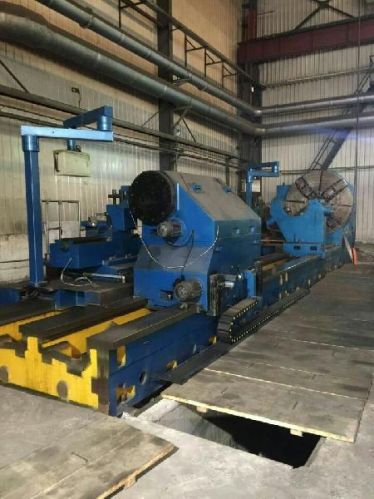

CNC Heavy Duty Lathe Machine CK61125

CNC Heavy Duty Lathe machine is a large lathe machine with horizontal type.Heavy Duty Lathes have good stability and good rigidity. The large lathe machine is mainly used to undertake kinds of turning work. It can turn kinds of parts such as end face, outer circle, inner hole and metric thread, inch thread, mold number of threads.In addition,CNC heavy duty lathe can also bear drilling, nesting, boring and other processes.
Technical specification of CNC Heavy duty lathe machine CK61125
1 Maximum swivel diameter on the bed 1250mm
2 Maximum turning diameter over carriage 1000mm
3 Maximum length of workpiece 6080100 dm
4 Maximum weight between center 20 t
5 Diameter of faceplate 1250mm
6 Maximum torque of faceplate 63KN.m
7 Range of spindle speeds rmin 1.25-250rmin
8 Maximum cutting force of carriage 60 KN
9 Range of feed rates ( long) 2-4500 mmmin
10 Range of feed rates( transverse ) 2-4500 mmmin
11 Rapid speed of of carriage( long) 4500 mmmin
12 Rapid speed of of carriage( transverse ) 4500 mmmin
13 Horizontal travel of tool post 525 mm
14 Travel of tailstock quill 250mm
15 Power of main motor 55KW
16 Machine weight(Approx) 70 t
17 Overall dimensions(L×W×H) 1250×490×225 cm
