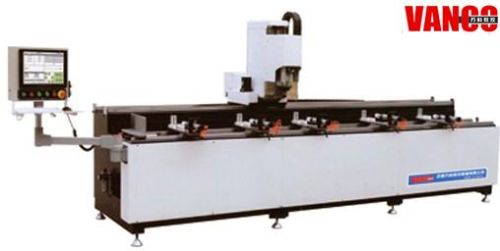

CNC High Speed Drilling Milling Machine

We offer cnc high speed drilling &milling machine sk-3500
features:
1. Using advanced industrial cnc systems with friendly computer interface, simple operation and reliable performance.
2. Suitable for aluminum profile, aluminum and wood profile, other light alloys profile such as copper profile and u-pvc profile.
3. The machine body made with the high strength welding structure, it is finished manufacture in one time after thermal aging.
4. Adopts imported high precision linear guideway, ball screw, gear rack and servo motor to ensure the smooth motion, high precision in positioning and processing.
5. High-quality imported automatic tool changing and high speed motorized spindle ensure running stability, noise and cutting ability.
Industry application：
transportation products manufacturing (train, car, ship, etc.), medical equipment, bathroom accessory, window&door, curtain wall, interior decoration and other industries.
Technical parameters：
x-axis stroke: 3500mm
x-axis feeding speed: 0~60mmin
x-axis positioning accuracy: ±0.05mm
y-axis stroke: 300mm
y-axis feeding speed: 0~48mmin
y-axis positioning accuracy: ±0.02mm
z-axis stroke: 200mm
z-axis feeding speed: 0~20mmin
z-axis positioning accuracy: ±0.02mm
repeat positioning accuracy: ±0.02mm
processing section roughness: ra6.3μm
main spindle power: 5.5kw
main spindle revolving: 0~18000rpm
working pressure: 0.6~0.8 mpa
power supply: 380v50hz
power: 8.5kw
dimension: 5100mm (l)*1420mm (w)*1750mm (h)
weight: 1100kg.
