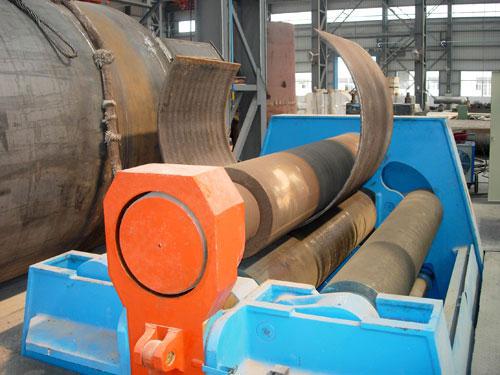

CNC Hydraulic 4 Rolls Bending Machine, Brand Name : DIMU

We offer 4 roller Hydraulic Plate Bending Machines, plate rolling machine, bending machine
1. 4 roller Hydraulic Plate Bending Machines has the capacity of bending from 2mm to 70mm in thickness and from 1000mm to 6000mm in widthlength.
2. Some of the features of 4 roller Hydraulic Plate Bending machines are:
2.1 All Rolls are hydraulically driven
2.2 Up & down movements of the side rolls are hydraulically powered
2.3 Drop-end (cover) controlling system to open and close from control panel.
2.4 Top roll tilts up
3. The frames of the machines are of fabricated, welded steel construction. The roll shafts and the materials and bearings used in production are of good (European) quality. Also the torque Limit of the machines is very high. NC playback and CNC graphic systems are available as optional accessory.
4. Our machines are designed using 3D CAD programmes and all calculations are carefully checked in the analyzed programme by experienced, specialist engineers before production is started. Machines are suitable for CE and all necessary electrical and hydraulic safety precautions are taken by engineers.
5. Spherical bearings are used for the rolls to minimize frictional resistance, which improves the capacity of the machines.
6. Optional accessories for easier bending are listed below:
6.1 Cone bending device
6.2 Induction hardened rolls
6.3 Infinitively variable speed of rotation
6.4 Side and central supporters for big sheet metal diameters
6.5 Extended rolls
6.6 Profile rolls
6.7 Central lubrication system
6.8 Digital display for both side rollers
6.9 Material feed table
6.10 NC graphic and NC playback control system.
