CNC Hydraulic Drilling Machine, Certification : ISO

We are offering cnc hydraulic drilling machine.
Feature products
1.plate drilling machine punch
3 in steel structure fabrication
4 power transmission tower line
product description

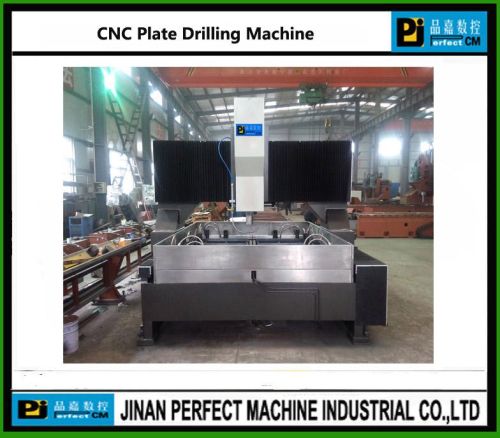

gantry type cnc drilling machine for steel plate
applicable industry:
cnc gantry plate drill is a special cnc machine for drilling connection boards and base plates of steel structure, tower, bridge and other industries.
product feature:
1. Cnc slider and drilling unit head can control depth of holes, with function of drilling blind hole, reaming, and chamfer angle.
servo motor power of x axis 1.3 kw
power head lateral driving type (y axis) guided by linear rolling guide; driven by ac servo motor and ball screw pairs.
Servo motor power of y axis 1.3 kw
servo motor power of z axis 0.85 kw
motor power of chip cleaner 0.75 kw
motor power of cooling system 0.25 kw
motor power of hydraulic station 2.2kw
positioning precision ( 0.1y)mm
re-positioning precision ( 0.1y)mm
clamping type attach morse 4# quick chuck and 3#, 2# reducing sleeve
electric control cabinet with dustproof ventilating device and lenovo computer
electric control type mistubishi plc
cnc axis quantity 3
with function of cadcam automatic generation
with function of hole site memory (memory hole site if power off suddenly) and drill pause
jinan perfect machine industrial co.,ltd
