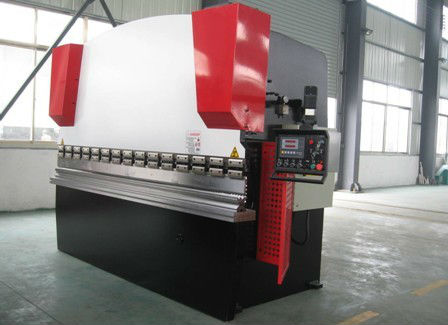

CNC Hydraulic Press Brake

We are offering cnc hydraulic press brake.
1. Hydraulic / mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by enc-18 programmable digital controller assuring accurate repeatability.parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
2. New style digit type manual crowning conveniently mounted on the right side of the bed enabling operator to adjust simply by rotating the dial whilst the analogue digit system indicates the amount of movement
3. Segmented heavy duty 86â° offset top punch is segmented for return bend clearance and incorporates a safety key to stop punch dropping.
4. Multi vee ('v') bottom die is made from solid die block design to handle heavy plate, safety edge vee ('v') is incorporated in bottom die block.
5. Conveniently mounted control box on pendant for quick swivel and adjustments.enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
