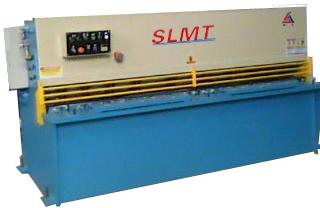

CNC Hydraulic Shearing Machine

We are offering cnc hydraulic shearing machine.
port :fob shanghai
payment terms: l/c ,t/t
minimum order quantity: 1 set / set
packaging details: plastic cover
delivery time:30 days
supply ability :150 set/set per month
specifications:
certification of iso and ce
e21 numerical controller
programmable function
high precision production
1 year warranty
general parameters
cutting thickness: 10mm
cutting length :2500 mm
cutting angle: 1°30'
travel times: 10times/min
material strength: ≤450(kn/cm)
stopper adjust range: 20-500mm
motor: 15 kw
main equipments
hydraulic system: omega
pump: gear pump
electrics: germany siemens
o-rings: japanese nok
connectors: germany emb
ball screw: taiwan hiwin
line guide rail: taiwan hiwin
controller system:estun e21/be optional
other standard equipments
segmented upper blade :1set (two sides can be used)
lower blade :1set (four sides can be used)
front supporting arms: 3
emergency stop button
back, and front safety fence
shadow line lighting
safety foot switch
foundation bolts :1set
toolings :1set (screw driver and spanner)
manuals and diagram :1book
dimension and weight
length :3040mm
width :1800 mm
height :1700 mm
