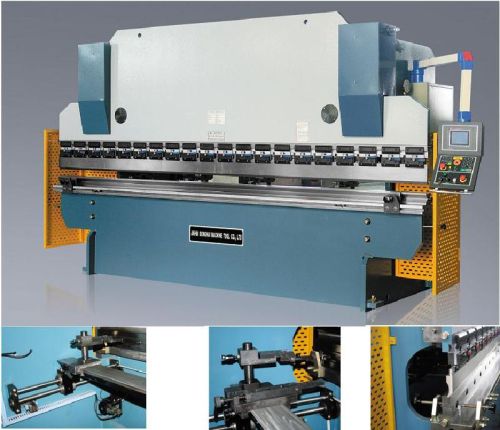

CNC Hydraulic Sheet Metal Bending Machine/ Press Brake WC67K-1000/4000

First, the whole main performance characteristics:
1, The frame is steel welded structure as a whole, by normalizing and high-frequency vibration to eliminate stress and ensure the overall accuracy of machine tools, with excellent rigidity, has an excellent anti-distortion, anti-tilt capability. Thickening of the table plate, thickening of the slider, so that machine with high rigidity, so when the slider bending, workbench minimal deformation of the workpiece with a excellent straightness and angle of consistency.
2, in the light of Germany DIN55222T2-80 standard designs.
3, the hydraulic system uses an integrated control system to reduce the pipe installation, imported seals to improve the stability of the machine's work, beautiful shape simple.
4, the master cylinder piston machine using space technology - the surface of Ni-P treatment, its hardness can reach HRC60 and above, with the relative motion of the piston guide sleeve used has its own lubrication wear-resistant zinc-based alloy, can tank a long-term are in good working condition.
5, using torsion axis synchronization, mechanical block, reliable, economical, and high accuracy.
6, the latter block material from the last slide from the numerical control system automatically adjust stroke can also be manually adjusted to facilitate operation.
7, the mold is equipped with deflection compensation agency.
Second, numerical control system functions:
1, with one-way and two-way positioning function, can effectively eliminate screw gap.
2, with the yield function of the election materials to avoid blocking the interference with the workpiece feed device, reduce wear and improve positioning accuracy.
3, with automatic or manual search function of the reference point. Has a power position memory function, the parameters, location and procedures for on-site protection.
4, with a multi-step processing programming capabilities, enabling dynamic multi-step operation, the completion of a one-time processing of multi-step parts, improve production efficiency.
5, with 1-axis servo motor automatic control slider up and down stroke adjustment, and the other axis servo motor and control over their block material.
Thirdly, the main configurations:
1, the main fuel tank seal manufactured by Japan val qua.
2, electrical box at the main pieces of production by the French Schneider.
3, the hydraulic system used in all cartridge valve control, hydraulic master the original using the German HOERBIGER Company
4, the standard low-noise hydraulic pump with space within the gear pump.
5, Specializes in manufacturing processing, fuel tank, complete sets of imported seals, to overcome the leakage.
6, choose China Taiwan HIWIN linear guide and ball screw.
7, the hydraulic system adopts German EMB pipe joints to ensure the long-term operation of the hydraulic system's stability.
8, selection of Panasonic Panasonic or Mitsubishi servo drives and servo motors.
