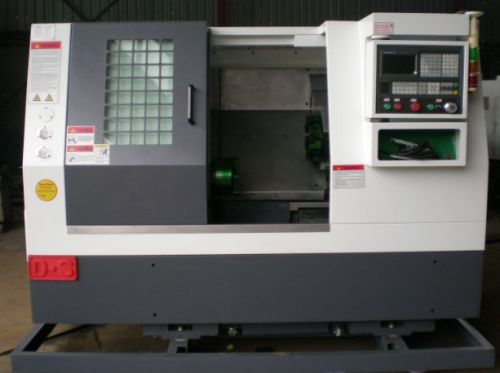

CNC Inclined Saddle Machine

We are offering cnc36k cnc inclined saddle machine.
machine is developed to meet market demand and is capable of efficiently machining various shaft or disc parts while offering multiple optional configurations for user.
max.swing dia.over bed mm 400
max.swing dia.over slide mm 160
max.cutting length mm 500
range of spindle speed r/min 50-3000
main motor power kw 5.5
diameter/form of chuck mm φ200
rapid moving speed of x-axis m/min 10000
rapid moving speed of z-axis m/min 10000
travel of x-axis mm 472
travel of z-axis mm 500
diameter of tailstock sleeve mm 60
travel of tailstock sleeve mm 80
form of turret 8-station turret carriage
form of bed guideway rectangle type
distance of bed guideway mm 330.
