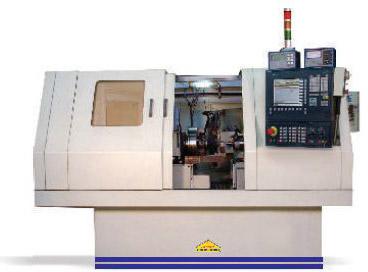

CNC Internal Grinding Machine

The CNC Internal Grinding Machines are designed to meet customer’s requirement for extremely close tolerances. CNC Internal Grinding Machines, that we offer, have short cycle times, flexible machining capabilities by using state of art CNC technology. CNC Internal Grinding Machines can be programmed for the operations in one set up like Bore Grinding, Internal Taper Grinding and Front & Back face Grinding. Different configurations of CNC Internal Grinding Machines are available with multi-spindles, such as twin head internal grinding, internal & external grinding. Salient Features

• Workhead has highly stablised spindle running with high precision antifriction bearings.
• Effective sealing arrangement protects any coolant and grinding dust entry, thus enhancing the life of bearings and critical parts.
• Slides are specially designed for higher load carrying capacity with precision feed back devices.
• Multiple operation in one setup ensures close control on all related accuracies like Concentricity, Perpendicularity, Runout and Parallelism etc.

SpecificationsModel GCI-300SSGCI-450SSGCI-300EGCI-300 Twin ISwing (Mm) 300450300/450300Min. Bore Dia. (Mm)52055Max. Bore Dia. (Mm)150300150150Max. Chuck Size (Mm)300400300300Grinding Speeds (Mps) 33 / 45 / 60 / 80*External Wheel Dia. 500External Wheel Width 50
