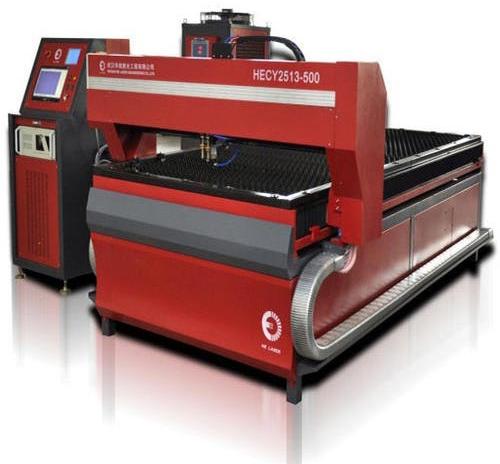

CNC Laser Drilling Machine

CNC Laser Drilling Machine that we export and supply is procured from the reliable sources. This machine makes it possible for drilling both very small and precise holes in a variety of shapes and orientations. It can be applied in a wide variety of materials, including difficult-to-machine aerospace alloys. The drilling of holes in aerospace/turbine engine parts generally serves to enhance the cooling characteristics of the part. These holes can be tapered or shaped to enhance the amount and direction of air or liquid flowing through them. Number of cooling holes can be drilled in one part with a single set up in cylindrical or unusually shaped parts. A high power pulsed Nd: YAG laser is normally used, occasionally a fiber laser is chosen, or a CO2 laser can be used with non-metallic parts.

Laser Drilling Machine makes it possible to machine both very small and precise holes in a variety of shapes and orientations in a wide variety of materials, including difficult-to-machine aerospace alloys. These holes can be tapered or shaped to enhance the amount and direction of air or liquid flowing through them. The drilling of holes in aerospace/turbine engine parts generally serves to enhance the cooling characteristics of the part. These holes can be drilled at extreme angles to the surface. Hundreds or thousands of cooling holes can be drilled in one part with a single set up in cylindrical or unusually shaped parts. A high power pulsed Nd: YAG laser is normally used, occasionally a fiber laser is chosen, or a CO2 laser can be used with non-metallic parts.
Specifications :

• YAG 500W laser

• Cut below 6mm on metal

• Cut area 3000mmx1500mm

• Max cut speed 8m/min

Laser Metal Drilling Machine integrates optical, mechanical, and electricity in one, which adopts laser, computer control technology and high-performance CNC laser power system. It is applied to cut stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe. Widely used in sheet-metal structure, high-low-voltage electrical cabinet production, hardware, knife-volume, production of advertising signs, metal crafts, decoration aviation, mechanical parts, electrical meter, saw blades, spring-chip and other industries.
Advantages :

• Be widely used in cutting stainless steel, carbon steel, alloy steel, spring steel, aluminum, copper, silver, titanium and other metal materials below 6 mm.

• High cutting precision suitable for cutting all kinds of sheet metals and machine panels, as well as various metal characters, decorative pattern, precise fittings, etc.

• Max cutting speed can reach 8m/min.

• Low consumption cost only compressed air blowing needed in the cutting process

• Fast investment recovery 90% gross margin, according to processing income of daily, it takes 5-6 months to return on investment.


Powerful control system:

• Using efficient CNC control software, which contain the following advantages powerful, Strong compatibility Compatible with NC documents, DXF, PLT, AI mapping software

• Convenient operation and maintenance. Without the mold, you can draw any graphic you need and the product can come out immediately. Save time and money

• Nesting editing software as the optional can fully improve the efficiency of material's utilization and cutting

• Powerful graphics display, Directly effect the performance of cutting, On-line monitoring of cutting path

• All the operational information are displayed on the LCD screen and friendly man-machine conversation interface bring easy operation and maintenance for customers

• Automatically record position, Back to the breakpoint cutting, Regression function

Price (FOB) in USD : From $50000 to $ 100000 …
