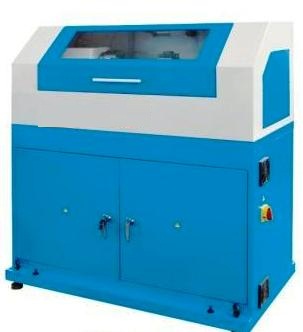

CNC Lathe, Material : Mild Steel

AP-2115 MAX SWING OVER BED 320mm MAX SWING OVER CARRIAGE 160mm MAX LENGTH OFWORKPIECE 500/750/1000mm SPINDLE SPEED 100-2000rpm SPINLDE BORE 38mm TAPER OF SPINDLE BORE MT5 TAPEROF SPINDLE OUTSIDE D4 STATIONS OF TOOL CARRIER 4/6 or GANG TYPE MAX SIZE OF TOOL POST 20 X 20mm MIN SETTING UNIT OF (Z)CROSS 0.01/0.001mm SERVO/STEPPER- X LONG 0.005/0.001mm MOVING SPEED OF SERVO STEPPER Z CROSS 3m/7.6m/min X CROSS 3m/4m/min TAPER OF TAILSTOCK QUILL MT3 MAX RANGE OF TAILSTOCK QUILL 100mm MOTOR POWER 2.2kw PACKING SIZE (LxWxH) 1653/1785/2088x1020x1660mm NET WEIGHT 750/850/950kg
