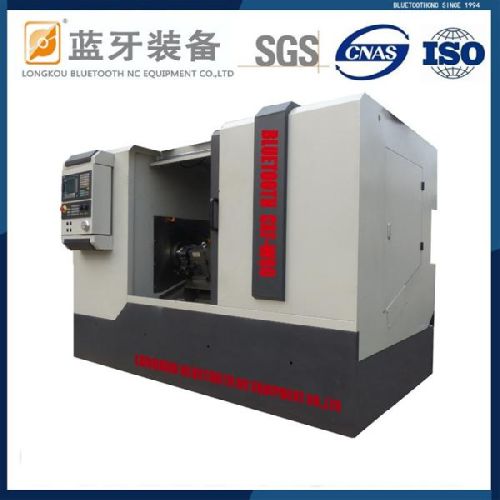

CNC Lathe, Power : 3-6kw

₹ 27.60 Lakh / Piece

MOQ1 Piece(s)
Max.speed2000rpm
Style of chuckHydraulic cylinder clamping
SystermSiemens 808D for main machine
Main voltage220V（AC）（Base on local standard)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 1994

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Otherscentral lubricating,connect systerm directly,automatic lubricating.
Type of processingfunction of turning + milling：flat、square and hexagon；32mm for Max. hexagon
Max.processing length300mm
Main voltage220V（AC）（Base on local standard)
Feed rate z axis300mm
Feed rate x axis200mm
Motor for x axis10N.M servo motor
Max x axis rapid traverse12m/min
Spindle bore dia55mm
Spindle noseA2-5
Control voltage24V（DC）
Hydraulic station2.2KW hydraulic pump
Style of chuckHydraulic cylinder clamping
Max.horizontal milling turrentMax.2000rpm
Headstockoil pump lubricating,connect systerm directly,automatic lubricating.
Max z axis rapid traverse12m/min
Machine size(mm)2600mm×1700mm×1900mm
N.W3000kgs
Status light3 colour
Max.swing over bed170mm
Horizontal cutting turrent4 tools turrent
Pneumtic unit attached0.6MPa
ServiceSimens whole world post-sale service
SystermSiemens 808D for main machine
Hand wheelmoving freely hand wheel
Max.through hole capacity52mm
Max.speed2000rpm
Size of 3-jaw chuck3H06A5
Main motor7.5KW
Motor for z axis10N.M servo motor

The cxf-w60 cnc lathe machine is our patent invention, it can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.
features:
the unique integration of cnc polygon machine with basic cnc lathe function for turning and polygon cutting are carried out at the same machine. Saving factory floor area , labor and the time for transportation and operation.
Variety polygon cutting can be performed by cnc control system and x & z axis driven by servo motors.
Copying polygon cutting without conventional profiling attachment , unlimited contouring.
Machining process:
machining two flats
machining two flats
machining hexagons
machining octagons
machining square rectangle
machining tapered polygons
machining contoured polygons
machining stepped flatspolygons
slots on the face
machining splines
any other flat surfaces
characteristics:
1. Full protective machine body avoid man-machine touch directly. Meanwhile, guarantee the nice appearance of machine. Low pressure operation box, eliminate the risk of electric.
2. Automatic lubrication system which can supply lubricating oil regularly. Make sure the machine can work stably.
3. Hydraulic closed chunk can insure the safe of workers and wonã¢ï¿½ï¿½t damage the workpiece.you neednã¢ï¿½ï¿½t change the cutter with 2,4,6 equilateral surface. Stepless speed control device. You can adjust the speed of spindle and feeding.
4. Counting automatically. You can control the amounts of workpieces. Adjustable supporting pads can control the stability of machine. Can choose proper feeding system according the features of workpieces.
