CNC Lathe

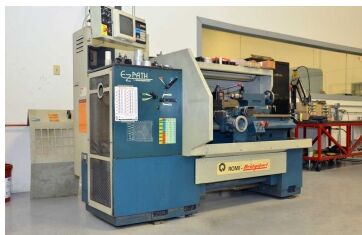

CNC LATHE For your precision turning requirements our Bridgeport EZPATH lathe offers a cutting diameter up to 14" for 30" long parts.
The EZ Path machine features EZPATH IIIS is constructed on a rigid cast-iron frame, with induction hardened and ground ways. The Turcite-coated carriage and cross-slide move on solid cast iron bed and saddle guideways for high rigidity, accuracy and durability. AC brushless servo motors and drives provide feed rates up to 394 ipm on the Z-axis and 295 ipm on the X-axis. Dual electronic handwheels are provided for manual or semi-automatic operation.
To provide control flexibility and enhanced operator safety, the handwheel unit remains stationary during automatic operation, or travels on an independent track outside the front sliding door for manual operation. A rigid one-piece tailstock, with two clamps instead of one, provides rigidity for heavy turning and manual drilling. The tailstock includes a large, manually operated quill with tang stop and tool knock-out features.
