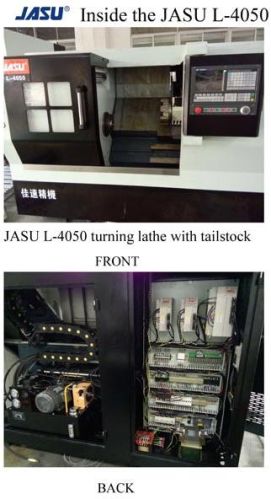

CNC Lathe Machine

₹ 29.54 Lakh / 35000 35000 Set

MOQ1 Set(s)
CNCLATHE
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering cnc lathe machine. item l-4050 parameter capacity max. Swing diam. Over bed 450 max. Swing diam. Over slide 220 max. Machining diam. 400 max. Machining length 420 slant bed 45°....

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering cnc lathe machine.

item l-4050 parameter capacity max. Swing diam. Over bed 450 max. Swing diam. Over slide 220 max. Machining diam. 400 max. Machining length 420 slant bed 45° spindle spindle nose a2-6 chuck 8’’ spindle borebar capacity 6152 spindle speed 4000rmp feeding xz axis travel 230500mm xz axis rapid traverse 2424mmin lead screw 32083208 min. Resolution 0.001mm motor spindle motor 7.511kw xz-axis servo motor 2.52.5kw coolant motor 0.49kw hydraulic motor power 2hp tailstock tailstock travel 450 tailstock quill travel tailstock quill dia. Tailstock quill taper a.t.c turret type hydraulic turret turret model y160 turret capacity 10-position tool shank size 25x25mm boring blade diameter ø25mm general power capacity 15kva overall dimensions 2500x1675x1800 n.w. 3500kg
