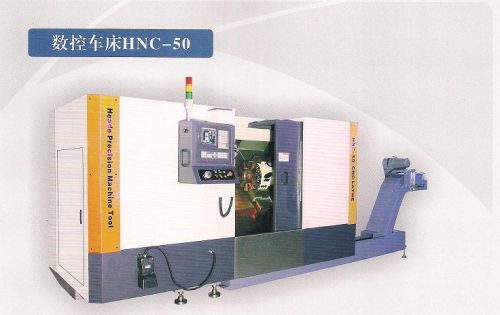

CNC Lathe Machine Hnc-50

We are offering cnc lathe machine hnc-50.
Machine characteristic
1.spindle unit has no thread pretensioning structure,high spindle precision,high dynamic balance precision,spindle long time using.
2.x,z direct using screw pretensioning structure,good resist thermal deformation
3.x,z direct guide using high grade cast iron,superaudio quenching,hard above hrc60
4.body using frame-box type structure,45o slant,high steel
selection configuration
1.control system:siemens,fanuc,mitsubishi,knd,gsk
2.tool-post:servo tool-post,hydraulic tool-post
main technical parameters
specification unit 　 parameters
max.swing over bed mm 500
max.swing over carriage mm 385
max.processing workpiece diameter mm 500
max.processing workpiece length mm 850
spindle speed r.p.m 100-2500
spindle nose type a2-8
spindle throughbore diameter mm 80
z-axis travel mm 800
x-axis travel mm 305
max.fast movement speed of z direct m/min 18
max.fast movement speed of x direct m/min 12
main motor power kw 18.5/23
z direct servo motor power kw 3.2
x direct servo motor power kw 3.2
tool-post station number number 8/10/12
tool hand size mm 口25
round tool hand size mm ф40h7
max.distance of tool rotate time 0.9s
range of chuck clamping mm ф30-ф254
main precision index
spindle circle beat≤0.003 position precision±0.01 repeat position
prcision0.005
hydraulic motor power kw 1.5
cooling pump power kw 0.37
tailstock sleeve diameter mm 85
tailstock sleeve travel mm 80
tailstock sleeve bore taper mt4
overall dimensions(lxwxh) mm 4245x1805x1805
machine weight kg 3500
