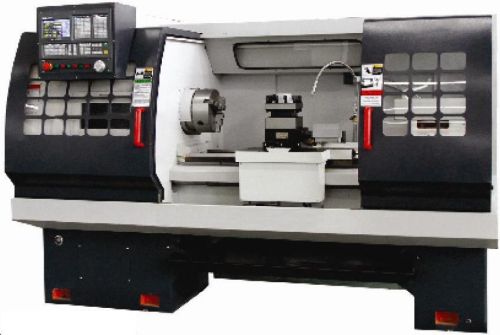

CNC Lathe Machine, Availability : 100-1000kg

We are offering Cnc Lathe Machine.
Specifications ctk4508 ctk4516 ctk4525 ctk4532 â ctk4545
bed incline 45 45 45 45 45
cutting length 250mm 300mm 400mm 580mm 1000mm
cutting capacity over bed ï�300mm ï�160mm ï�250mm ï�320mm ï�450mm
cutting capacity over support ï�320mm ï�200mm ï�280mm ï�390mm ï�500mm
chuck size a2-4 a2-5 a2-6 a2-8 a2-8
spindle power 5.5kw 5.5kw 5.5kw(7.5w) 7.5kw 11kw
spindle speeds 4500rmp 4500rmp 4500rmp 2000rmp 2000rmp
spindle bore ï�50mm ï�50mm ï�50mm ï�82mm ï�82mm
through-spindle draw tube bore ï�40mm ï�40mm ï�40mm ï�72mm ï�72mm
rapid feed 18mmin 18mmin 18mmin 18mmin 18mmin
x travel 250mm 110mm 150mm 200mm 320mm
z travel 250mm 300mm 400mm 580mm 1000mm
tailstock quill travel â  ï�65mm ï�65mm ï�100mm ï�100mm
tailstock quill travel �� 80mm 80mm 120mm 120mm
tailstock travel �� 300mm 500mm 580mm 1000mm
tailstock taper �� mt4 mt5
positioning accuracy 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm
repeatability accuracy 0.008mm 0.008mm 0.008mm 0.008mm 0.008mm
overall dimensions 2.2ã�0.89ã�1.46m 2.2ã�0.89ã�1.46m 2.32ã�1ã�1.53m 2.58x1.04x1.64m 3.17x1.18x1.7m
weight 3000kg 4000kg 5100kg 5600kg 7100kg
