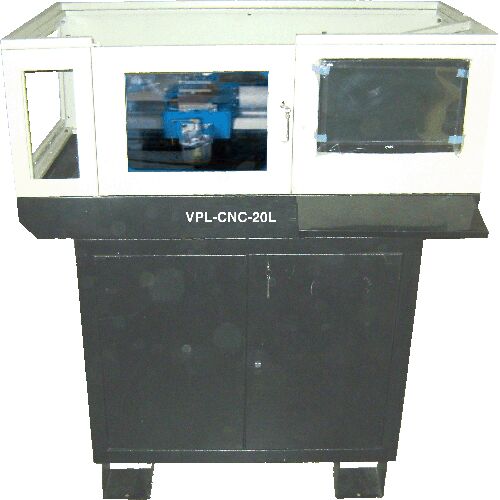

    CNC Lathe System (VPL-CNC-20L)

    CNC Lathe System (VPL-CNC-20L)

    Get Latest Price
    • The speed of the spindle100-3000 r/min
    • Overall Dimensions51″x34″x70″ (1295mm x 864mm x 1778mm) (WxDxH)
    • Spindle taperMT3
    • Max. travel – Z axis250 mm
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    VPL Infotech & Consultantsverified-icon
    location Preet Vihar, Delhi
    4.6/5fill iconfill iconfill iconfill iconhalf icon(28)
    View Number
    • calendar Member Since 19 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 07AACFV6024H1Z9

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • The max. speed of moving (X,Z)2000 mm/min
    • Tool post return orientation precision0.005 mm
    • Shipping weight150 Kg. (Approx.)
    • The speed of the spindle100-3000 r/min
    • Motor of X axis1.35 N.M.
    • Taper of tailstockMT2
    • Max. distance between centers360 mm
    • Motor of Z axis1.35 N.M.
    • Tool position4
    • The width of bed100 mm
    • Position accuracy0.015 mm
    • Max. travel – Z axis250 mm
    • The speed of feeding (X,Z)500 mm/min
    • Spindle taperMT3
    • Swing Over Bed200 mm
    • Repeatability accuracy0.01 mm
    • Swing over apron100 mm
    • Overall Dimensions51″x34″x70″ (1295mm x 864mm x 1778mm) (WxDxH)
    • Travel of tailstock50 mm
    • Angle of the tool post360°
    • Max. travel – X axis150 mm
    • Main motor power500W

    • It has coolant system with removable collector.
    • The system installed in a metallic enclosure with 6′ height, open able front door, acrylic front and side cover and display panel.
    • It has mechanical storage system on the bottom for Computer system, Controller, UPS and for Electrical wiring.
    • The system supplied with PC with Intel Pentium-IV CPU @ 2.4 GHz, 512MB RAM, 52X DVD Writer, Optical Mouse, 15” TFT Monitor & Keyboard.
