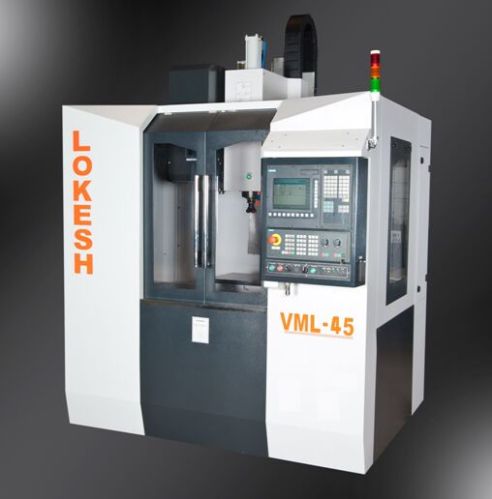

Contact SupplierHigh Precision Vertical Drilling And Tapping Machining Center
3 Axes CNC machine for the machining of small size components with high speed
Model | - | VML 45 | ||||
Job Accomodation | ||||||
Table Working Surface | mm | 600x400 | ||||
Maximum Loading Capacity | Kg | 300 | ||||
T-Slots-Size/No. | mm/No. | 14/3 | ||||
Height of Table from Floor Level | mm | 960 | ||||
Distance from Top Surface of Table to Bottom Surface of Spindle Nose | mm | 350-825 | ||||
Transverses | ||||||
Longitudinal Movement of Table (X-Axis) | mm | 500 | ||||
Transverse Movement of Table (Y-Axis) | mm | 400 | ||||
Vertical Movement of Head (Z-Axis) | mm | 475 | ||||
Spindle | ||||||
Maximum Spindle Speed | Rpm | 10000 (12000) | ||||
Spindle Taper | Type | BT 30 | ||||
Spindle Motor Power | Kw | 3.7/5.5 | ||||
Feed Rates | ||||||
Feed Rate | mm/min | 1-10000 | ||||
Rapid Transverse Rate X/Y/Z Axes | M/Min | 48/48/48 | ||||
Auto Tool Changer | ||||||
No. of Tools (Storage Capacity) | No. | 20 | ||||
Max. Tool Diameter with Adjacent Tool | mm | 63 | ||||
Max. Tool Diameter without Adjacent Tool | mm | 80 | ||||
Max. Tool Length | mm | 200 | ||||
Max. Tool Weight | Kg | 3 | ||||
Tool Change Time Tool to Tool | Sec | 2 | ||||
Tool Change Time Chip to Chip | Sec | 3.5 | ||||
Accuracies (As perVDI-DGQ-3441) (With Rotary Encoder) | ||||||
Positional Accuracies | mm | 0.01 | ||||
Repeatability | mm | ±0.005 | ||||
CNC System | Make | Fanuc/ Siemens/ Mitsubishi | ||||
Power Sources | ||||||
Electrical Supply | Kva | 15 | ||||
Compressed Air Pressure | Mpa | 0.5 | ||||
CompressedAir Quantity | L/Min | 200 | ||||
M/c Physical Parameters | ||||||
Overall Size (LXBXH) | Mtrs | 1.9x2.25x2.65 | ||||
Overall Weight (Approx.) | Kg | 3050 | ||||
