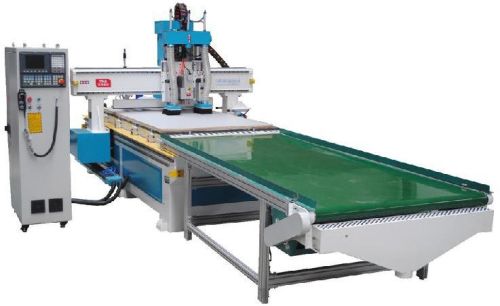

CNC Machining Center

Cnc cutting processing center, automatic tool change processing center, disk tool change processing center
functional characteristics
automatic feeding, optimization of open materials, playing vertical holes, automatic cutting at one go, process without interruption, to achieve maximum efficiency output.
Machine control interface design humane, fool-style operation, the operator can be a simple training can be posts, no skilled workers. Machine action quick and efficient, high efficiency, to help you achieve leap in production capacity.
Countertops for the vacuum adsorption table, double anti-times the plate material, can be a strong adsorption of different areas of the material.
Applicable industries: plate furniture, cabinet wardrobe, office furniture, custom furniture.
Device parameters:
performance indicators
contact email: 1512122797@qq.com, tel: 13625974724
stroke x travel 1300mm
y travel 2500mm
z travel 180mm
platform size 1350 × 2650mm
accuracy machining accuracy ± 0.2mm
repeat positioning accuracy ± 0.2mm
structure mesa structure mesh vacuum adsorption table (including 7.5kw vacuum pump)
x, y, z structure x, y germany hennessy 1.5m high precision helical rack, z taiwan tbi screw
speed ​​blank line speed 48m min
working speed 25m min
the same time as
spindle spindle power chang chuan cc 9kw domestic tool spindle italy spindle plus 20,000
knife library 12, disc magazine
spindle speed 0-18000r min
row drill italy fam5 + 4 vertical row drill group
operating mode japan yaskawa imported servo (with reducer) z-axis with brake.
Operating voltage ac380v 50hz
run the instruction g code
operating system taiwan new generation system 6mb
machine weight 2500kg
vacuum cleaner
