CNC Machining Center

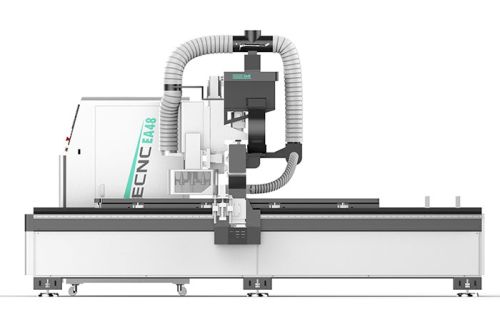

CNC Machining Center EA48
EA48 comes with  9.0kw ATC spindle with 12 carousel magazines .So EA48 has versatile functions: routing, drilling, cutting,  edge chamfering, etc.
MISSILE-EA48 Product Parameters
XYZ working area 1300*2500*200mm
XYZ Traveing Positioning Accuracy ±0.02mm
XYZ Repositioning Accuracy ±0.02mm
 Table Surfce Vacuum table
Max.Traveling Speed 60000mmmin
Max.Working Speed 25000mmmin
Spindle Power HSD Air-cooling 9KW
Drive&Motor YASKAWA servo
Tool Storage Capacity 12
Drilling Capacity 9
Working Voltage AC380V50Hz3PH
Operating System Syntec Control System
Features
●EA48 comes with  9.0kw ATC spindle with 12 carousel magazines .So EA48 has versatile functions: routing, drilling, cutting,  edge chamfering, etc.
●EA48 comes with cylinder positioning system.
●EA48 equipped with pusher which can push finished material down from the main working table and clean the table surface at the same time. In this situation, operator can downloading easily, and the new loading material can be also firmly adsorbed.
CNC Machining Center and CNC Machining comes with 9.0kw ATC spindle with 12 carousel magazines. If you need know more, welcome to contact us.
E Series CNC Router including CNC Router, CNC Machining Center, CNC Machining Center For Aluminium, Screw Transmission ATC CNC Machining Center etc.
