CNC Metalworking Lathe Machine

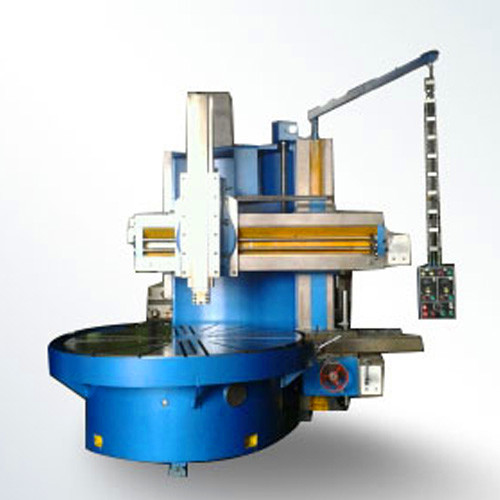

Product name : CNC vertical lathe machine
We specialize in the manufactures and sells of metalworking machines. Our products are widely used in Heavy Machinery Industry, mining Equipment Manufacturing, the steel industry, chemical equipment manufacturing, power equipment manufacturing, railway rolling-stock industry and metallurgical machinery manufacturing etc.
Technical specification of CNC vertical lathe machine CK5118
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 rmin
14 Power of Feed motor 1.31.7 kw
Revolutions 9401440 rmin
15 Rapid travelling speed of tool post 2000 mmmin
16 Machine weight 17.5 t
17 Overall dimensions(L×W×H) 2900×2900×3800mm
